Flamic Italy Dough Sheeter SF500VDX1200 Floor,VariableSpeed / เครื่องรีดแป้งแบบไฟฟ้า [ราคายังไม่รวมภาษีมูลค่าเพิ่ม The price excluding VAT]

conveyor belt width 500 mm

table length 850, 1000 or 1200 mm

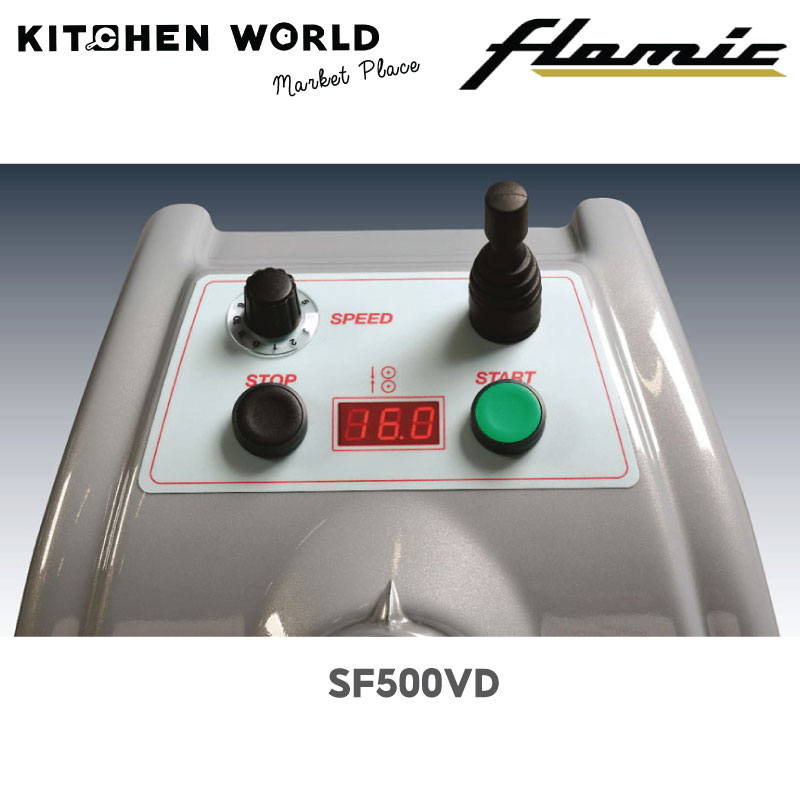

electromechanical control panel

n. 2 rolling pins dough included

roller gap reduction: manual

digital display for lamination thickness

precise thickness regulation

fixed speed of conveyor belts (SF500D) or variable (SF500VD)

raised tables to limit the overall dimensions when the machine is not in use

reverse laminating direction by joystick and pedal

body in epoxy painted steel (on request in stainless steel)

easily removable scrapers

rolling pin (additional)

Machine code		SF500D X 850	SF500D X 1000	SF500D X 1200	SF500VD X 850	SF500VD X 1000	SF500VD X 1200
Conveyor belt width	mm	500	500	500	500	500	500
Table length	mm	850	1000	1200	850	1000	1200
Speed of discharge conveyor belt	mt./min.	28	28	28	3 / 34	3 / 34	3 / 34
Speed of infeed conveyor belt	mt./min.	16	16	16	1,5 / 18	1,5 / 18	1,5 / 18
Diameter of laminating rollers	mm	60	60	60	60	60	60
Roller gap	mm	0,2 - 35	0,2 - 35	0,2 - 35	0,2 - 35	0,2 - 35	0,2 - 35
Motor power	kW	0,50	0,50	0,50	0,50	0,50	0,50
Standard voltage	V / PH / Hz	400 / 3 / 50	400 / 3 / 50	400 / 3 / 50	230 / 1 / 50-60	230 / 1 / 50-60	230 / 1 / 50-60
Machine weight	Kg	176	178	184	176	178	184

dimensionS SF500D
